Compression fittings deliver a dependable method to join copper pipes, removing the need for solder work or torch heat. A Copper Compression Union employs a nut, ferrule, and body to form a leak-resistant seal when the nut is tightened with a wrench. This feature makes the Compression Fitting 3/4 and the 3/4 Copper Compression Fitting popular choices among both professional plumbers and DIY enthusiasts.

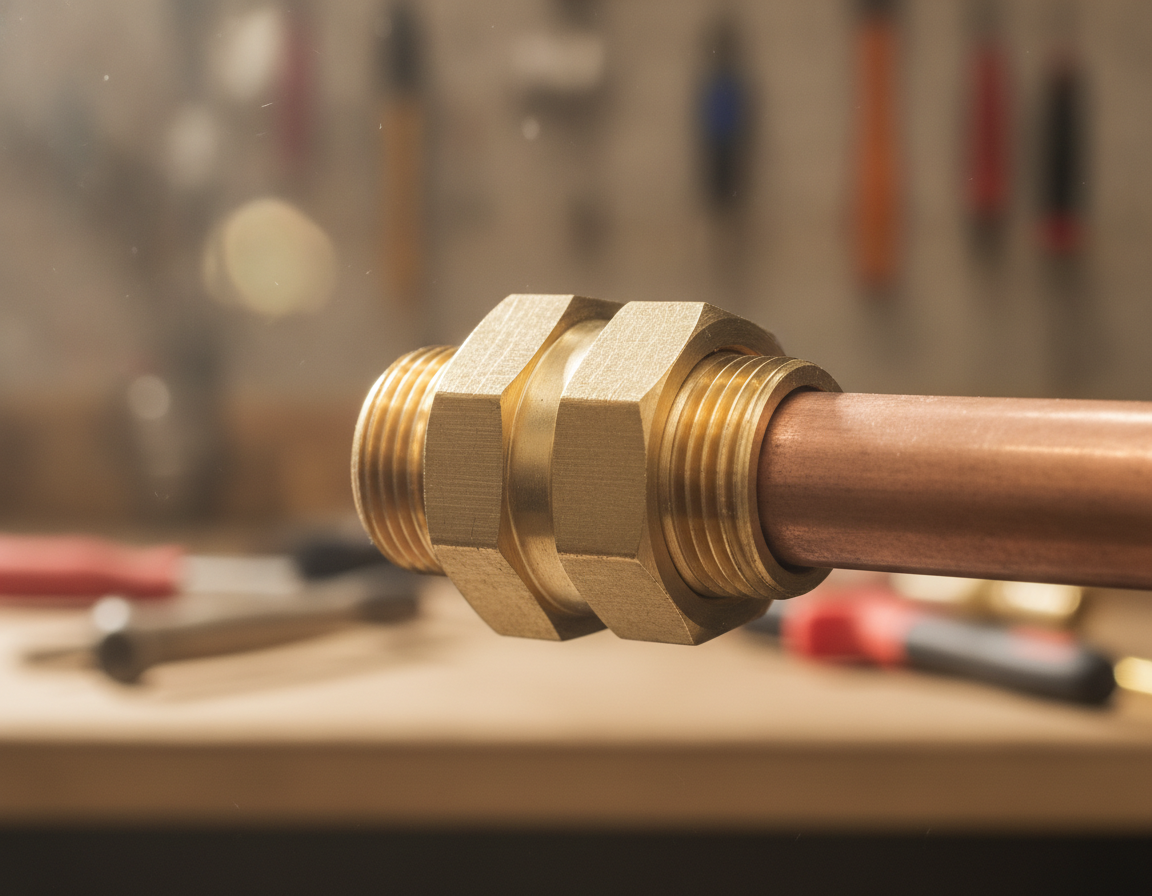

3/4 Compression Fitting
These unions are versatile, suitable for both residential and commercial projects, including water lines and instrumentation. Installation Parts Supply often stocks 3/4 Compression Fitting Copper and 3 4 Compression Fittings in materials such as brass, copper, and stainless steel. As the nut tightens, the ferrule compresses between the tapered body and nut, sealing tubing such as annealed copper or compatible thermoplastic tube.
Important Takeaways
- A Copper Compression Union connects copper pipe without solder or torch heat.
- Compression Fitting 3/4 and 3/4 Copper Compression Fitting are common sizes.
- Installation Parts Supply typically offers 3/4 Compression Fitting Copper and 3 4 Compression Fittings.
- Brass bodies and ferrules provide strength and corrosion resistance.
- Tightening the nut with a wrench presses the ferrule and produces a leak-tight seal.
Understanding Copper Compression Union Design And Components
A Copper Compression Union is a mechanical fitting that joins tubing without solder. These unions are installed in plumbing, HVAC, refrigeration, gas distribution, and instrumentation systems. This is because it provides a tight, compressive seal. The 3 4 Copper Compression Union is frequently used in residential and light-commercial installations.
Copper Compression Union Uses And Basics
A compression union joins two pipes by compressing a ring around the tube as the nut tightens. It is useful for quick repairs, service loops, and tight spaces where an open flame is impractical. A 3/4 Copper Compression Fitting is well suited for mains, branch lines, and appliance feeds where brazing is not desired.
Compression Union Parts: Body, Ferrule Olive, And Nut
The union body forms the threaded section that receives the nut. The ferrule, often called an olive, compresses and seals against the pipe and body when the nut is drawn up. The nut threads onto the body and delivers the compressive force. Correct ferrule seating is necessary for a leak-free joint and dependable field serviceability.
Materials Used With Copper Unions: Copper, Brass, Stainless Steel, And Plastics
Brass unions provide ductility and corrosion resistance, making them compatible with copper pipe for water and gas. Stainless steel offers extra strength for high-pressure or high-temperature systems. Copper-to-copper unions create uniform thermal expansion and fit standard tubing sizes. Plastic ferrules and fittings, like acetal or nylon, show up in low-pressure domestic systems where chemical resistance and nonmetallic connections are desired.
Copper-To-Copper Unions And Galvanic Corrosion Risk
Matching metals reduce galvanic corrosion risk because similar alloys have closer electrochemical behavior. A copper-to-copper union, or a brass body paired with copper pipe, limits active corrosion at the connection. Avoid pairing copper with carbon steel or dissimilar metals without dielectric breaks when using a 3/4 Compression Fitting Copper to ensure long-term durability.
Benefits Of Compression Fittings For Copper Pipes
For copper pipe work, compression fittings provide a fast, safe alternative to soldered joints. They remove the need for open flame work, which limits fire risk around insulation, drywall, framing, or older structures. A Compression Fitting 3/4 can form a dependable seal without heat, making it practical for retrofits and tight locations.
Installation is usually straightforward across many fitting brands. First, slide the nut and then the ferrule. Next, insert the tube fully into the body and hand-tighten before applying the final wrench turns. A 3/4 Compression Fitting or 3 4 Compression Fitting can be fitted quickly in tight crawl spaces and behind cabinets where a torch would be impractical.
Serviceability is a major strength of compression unions. Many plumbers and technicians like 3 4 Compression Fittings because the assembly can often be loosened or repositioned without cutting the pipe. Ferrules may need replacement after disassembly, yet the overall joint often remains reusable, saving time during repairs and modifications.
Compression fittings are appropriate for a wide range of systems beyond household plumbing. They are used in gas distribution, HVAC refrigeration lines, and instrumentation where leak integrity and ease of maintenance are critical. For projects requiring a compact, heat-free connection, a Compression Fitting 3/4 or 3/4 Compression Fitting provides a practical solution.
| Comparison Point | Compression Fitting | Soldered Joint |
|---|---|---|
| Flame requirement | No open flame | Yes |
| Assembly time | Quick | Moderate |
| Ease of service | Easy to disassemble | Permanent |
| Use in tight spaces | Very good | Often difficult |
| Common uses | Repairs, gas, HVAC, and serviceable lines | Domestic water, long-term sealed joints |
Choosing Size And Material For Reliable Compression Connections
A reliable plumbing joint depends on the correct size and material selection. Before making a purchase, check the pipe’s outside diameter and the fitting’s designation. Misreading terms such as 3/4 Compression Fitting can result in leaks, poor fit, and expensive repairs.
When selecting fittings, it is essential to understand the difference between nominal size and outside diameter OD. Look for SKU terms such as 3 4 Copper Compression Union or 3/4 Copper Compression Fitting. Correct sizing allows proper ferrule seating on the copper tube.
Common SKU keywords to look for
Retail pages and manufacturer catalogs may list the same fitting under several names. Look for clear labeling and adherence to standards. Common terms include Compression Fitting 3/4 and 3 4 Copper Compression Union. Make sure the product description aligns with your pipe OD or nominal sizing requirement.
Material choices
Brass is the commonly selected material for copper pipe systems due to its ductility and corrosion resistance. A 3/4 Union Brass or a 3 4 Union Brass suits the needs of most residential and light-commercial applications.
Copper unions are useful when matching metals, controlling thermal expansion, and reducing galvanic activity. A 3/4 Compression Fitting Copper offers a homogeneous connection suitable for refrigeration and traditional plumbing.
Stainless steel is recommended for applications requiring higher pressure or resistance to aggressive chemicals. Compared with brass and copper, it delivers higher strength and stronger chemical resistance.
When plastic compression fittings can be used
Acetal or nylon compression fittings may be suitable for low-pressure domestic water lines or situations where non-conductivity is needed. However, they have drawbacks, including lower pressure ratings, lower temperature tolerance, and sensitivity to some chemicals.
Comparison of common coupling materials
| Material | Usual Application | Durability | Selection Notes |
|---|---|---|---|
| Brass, including 3/4 Union Brass | Water lines, gas service, and general plumbing | Strong | Cost-effective, compatible with copper |
| 3/4 Compression Fitting Copper | Refrigeration, plumbing, and same-metal joints | Reliable for standard service | Best where same-metal compatibility matters |
| Stainless steel fittings | Industrial or aggressive-fluid applications | Strong | Excellent for harsh industrial applications |
| Plastic acetal/nylon | Low-pressure household water lines | Moderate at best | Nonmetallic but limited by temperature and chemistry |
Helpful sizing tip
When you see names such as 3 4 Brass Compression Coupling or 3/4 Inch Compression Fitting, confirm whether the listing refers to outside diameter or nominal pipe size. Ensure compatibility with manufacturer specifications and approvals from trusted brands like Dixon, if applicable.
How To Install A Leak-Free Compression Union
Start with copper tubing that is undamaged. Use a pipe cutter to make a square cut. Remove any burrs with a deburring tool or fine sandpaper. A smooth, square tube end is important for preventing ferrule damage and creating a reliable seal with 3/4 Compression Fittings.
Assemble components in the correct order. Slide the compression nut onto the pipe with the threads facing outward, then install the ferrule. Insert the pipe fully into the union body until it bottoms out. This step is critical to avoid gaps that can cause leaks when using a 3 4 Brass Compression Coupling or a 3/4 Compression Fitting Copper.
Hand-tighten the nut first to align parts. Then, use two wrenches: one to hold the fitting body steady, the other to turn the nut. Follow the manufacturer’s recommended number of wrench turns after finger-tight. Over-tightening can crush the ferrule or crush the copper, reducing the life of a 3/4 Copper Compression Fitting.
Do not reuse ferrules after they have been compressed. Use a new ferrule and nut for each new compression joint. Avoid installing compression joints in areas exposed to constant vibration or repeated movement. These conditions can loosen fittings like 3/4 Compression Fittings and 3 4 Brass Compression Coupling over time.
Know the pressure and temperature ratings for the chosen fitting. Check product datasheets or packaging before installing. After assembly, slowly restore pressure and inspect for leaks. If minor weeping appears, tighten incrementally. Persistent leaks require disassembly and inspection of the ferrule, nut, and pipe end to confirm correct seating.
Maintaining, Replacing, And Troubleshooting Compression Unions
Begin by shutting off the water supply and relieving pressure. Use two wrenches to hold the fitting body while turning the compression nut counter-clockwise. If the nut is seized, apply penetrating oil and allow it to soak before trying to remove it.
Safe removal of an existing compression union
Hold the pipe steady with one wrench and turn the nut with another. Once the nut loosens, slide the nut and ferrule off the tube. If the union is old, back off slowly to avoid sudden leaks or pipe damage.
When to replace the ferrule and nut versus the entire union
Replace the ferrule and nut when the fitting body looks sound and the sleeve shows wear or deformation. Replace the full union if the body threads are corroded, leaks continue after new ferrules are installed, or the assembly no longer meets pressure or material requirements.
Common failure signs: weeping, corrosion, or ferrule damage
Inspect for weeping around the nut and ferrule, green or white corrosion on copper or brass, and ferrules that are crushed, split, or distorted. Vibration may gradually loosen compression unions and cause slow leaks over time.
How to remove a stuck ferrule without damaging copper pipe
Carefully score the ferrule lengthwise with a thin rotary blade or hacksaw, then pry it open and remove it. If available, use a ferrule puller for cleaner removal. If the tube is nicked, flattened, or damaged, cut the end square again, deburr it, smooth it, and reinstall with a new ferrule and nut.
Longevity comparison: compression unions and soldered joints
Under static conditions, soldered joints usually provide a more permanent seal and may last longer. Compression unions are easier to service and require no flame, making them useful for repairs and confined spaces. Where vibration or long-term mechanical stress is present, soldered joints often outperform compression fittings.
| Item | Serviceability | Typical Lifespan | Ideal Application |
|---|---|---|---|
| Brass 3 4 Compression Union | Serviceable, though ferrules may need replacement after repeated cycles | 5–15 years depending on conditions | Service work, confined spaces, and flame-free jobs |
| Brass 3/4 Union | Moderately serviceable when nut and ferrule are replaced | 5–15 years | Plumbing runs that may need future service |
| 3/4 compression connector | Short-term serviceable with new ferrules recommended | Depends on material, with brass often lasting 7–20 years | Heat-free repairs and retrofit work |
| 3/4 inch compression fitting | Simple to install, though ferrule reuse should be avoided | Depends on environment; shorter under vibration | Residential plumbing and retrofit work |
| 3/4 compression fittings compared with soldered joints | Permanent once soldered, but very durable | Frequently 20+ years if installed correctly | Permanent runs and high-vibration systems |
When buying spare parts, compare compatible 3/4 Compression Fittings and 3/4 Inch Compression Fitting components from manufacturers such as Mueller, Nibco, or Watts. Always verify material compatibility and pressure ratings before reinstalling any replacement ferrule or nut.
Copper Compression Union Summary
Copper compression unions provide a practical solution for joining copper tubing without the need for soldering. When correctly sized and installed, the union body, ferrule, and nut form a tight seal. That makes them useful where heat is impractical or where future serviceability matters.
When choosing materials, match the fitting to the application: brass or copper for potable systems and lower galvanic risk, stainless steel for harsh or high-stress service, and approved plastics where they are permitted. A 3/4 Compression Fitting or 3/4 Copper Compression Fitting can perform well when the pipe is cut square, the ferrule is seated properly, and tightening follows manufacturer guidance.
Maintenance is easy: inspect for weeping or corrosion, replace ferrules when needed, and avoid overtightening to extend union life. For parts such as a 3 4 Copper Compression Union or 3 4 Union Brass, confirm availability and specifications through Installation Parts Supply. This helps ensure compatibility, proper sizing, and correct installation guidance.
